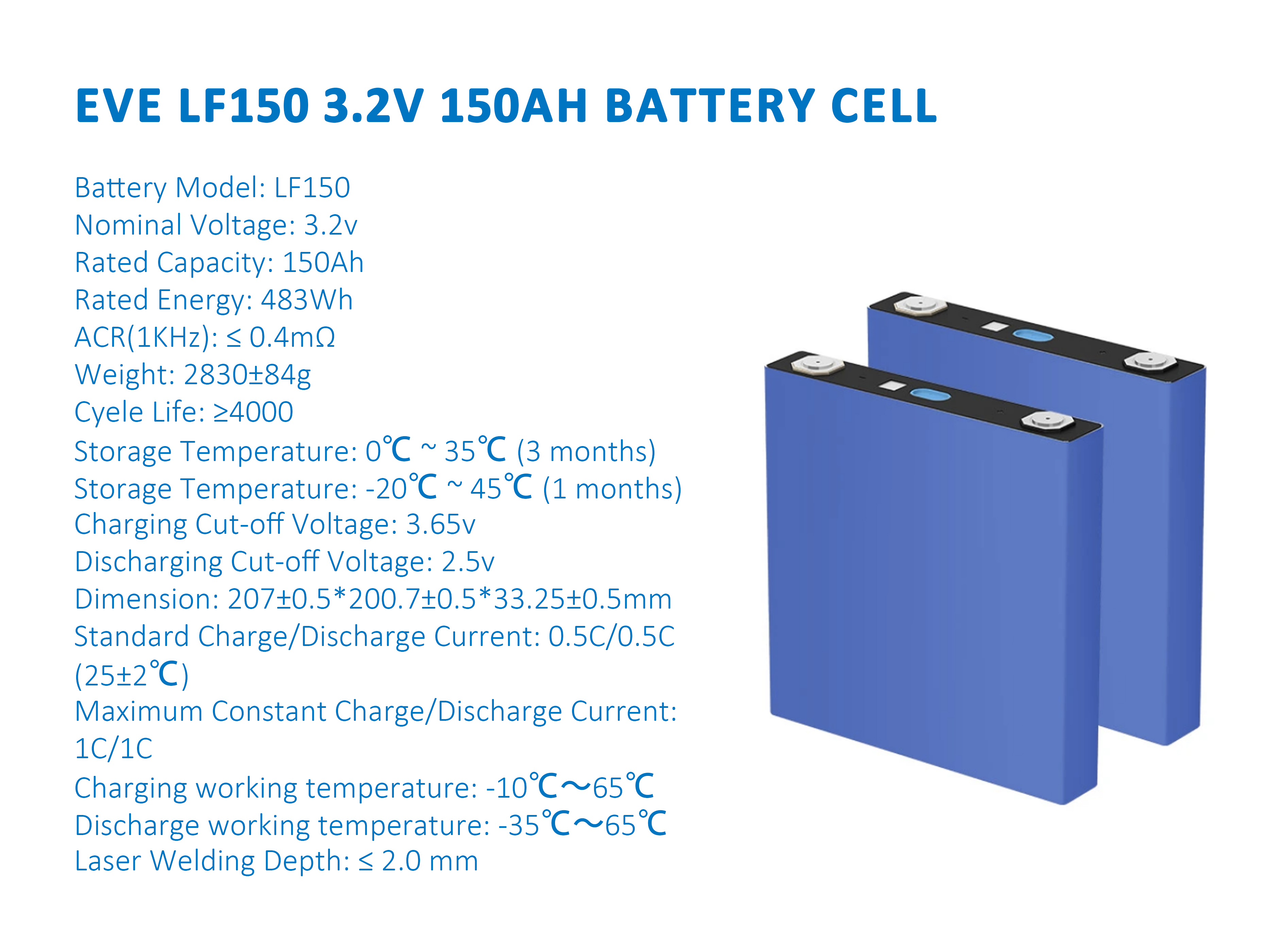

Battery Model: LF150

Nominal Voltage: 3.2v

Rated Capacity: 150Ah

Rated Energy: 483Wh

ACR(1KHz): ≤ 0.4mΩ

Weight: 2830±84g

Cyele Life: ≥4000

Storage Temperature: 0℃ ~ 35℃ (3 months)

Storage Temperature: -20℃ ~ 45℃ (1 months)

Charging Cut-off Voltage: 3.65v

Discharging Cut-off Voltage: 2.5v

Dimension: 207±0.5*200.7±0.5*33.25±0.5mm

Standard Charge/Discharge Current: 0.5C/0.5C (25±2℃)

Maximum Constant Charge/Discharge Current: 1C/1C

Charging working temperature: -10℃～65℃

Discharge working temperature: -35℃～65℃

Laser Welding Depth: ≤ 2.0 mm

Max Pressure Force on Poles: 700 N(Max force in longitudinal direction, no deformation)

Max Torque Force on Poles: 6 N·m(Max torsion, non-loosen)

Max Temperature Force on Pole: 130℃(The maximum temperature that the pole bears before the plastic pad deforms)
