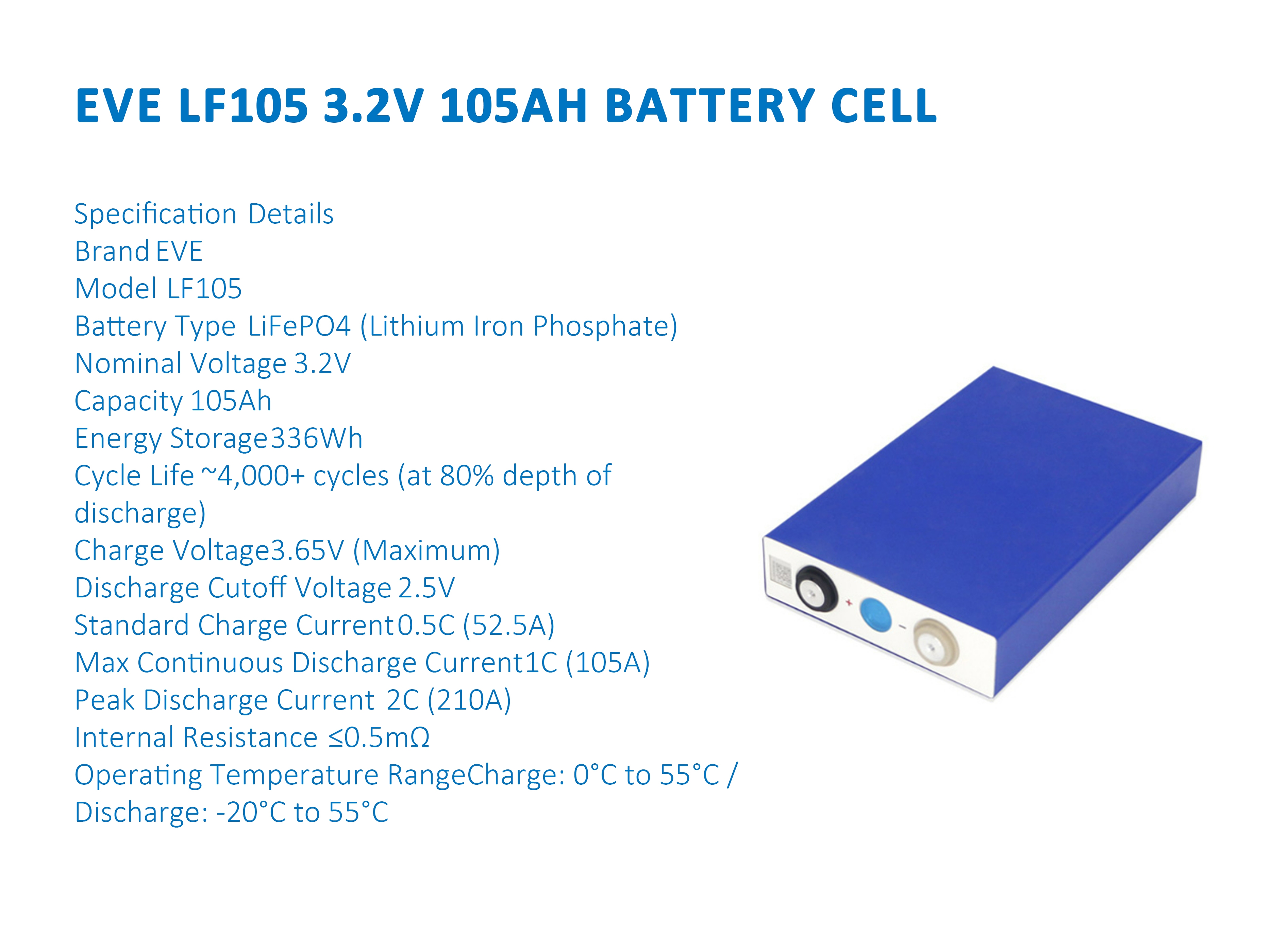

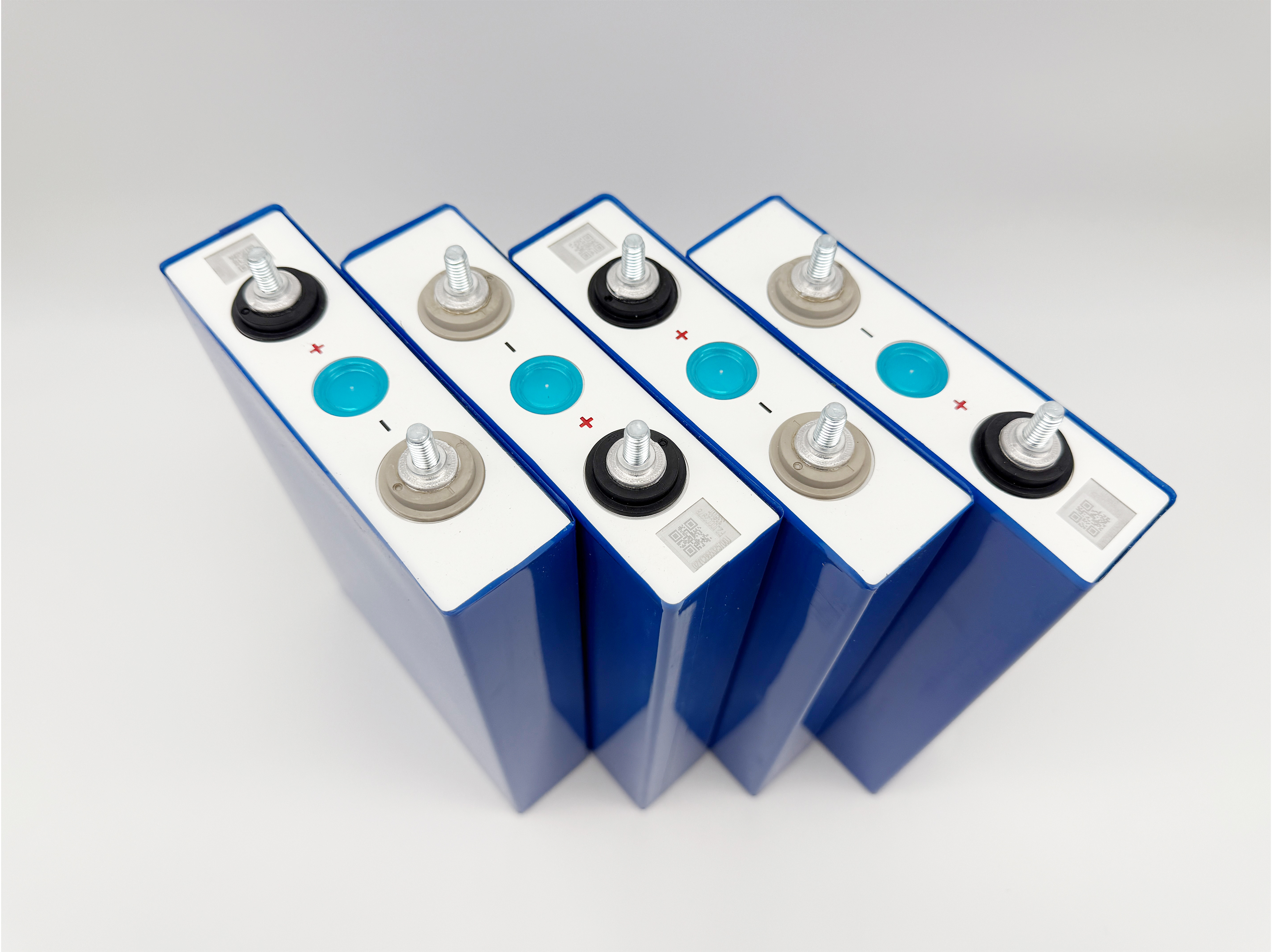

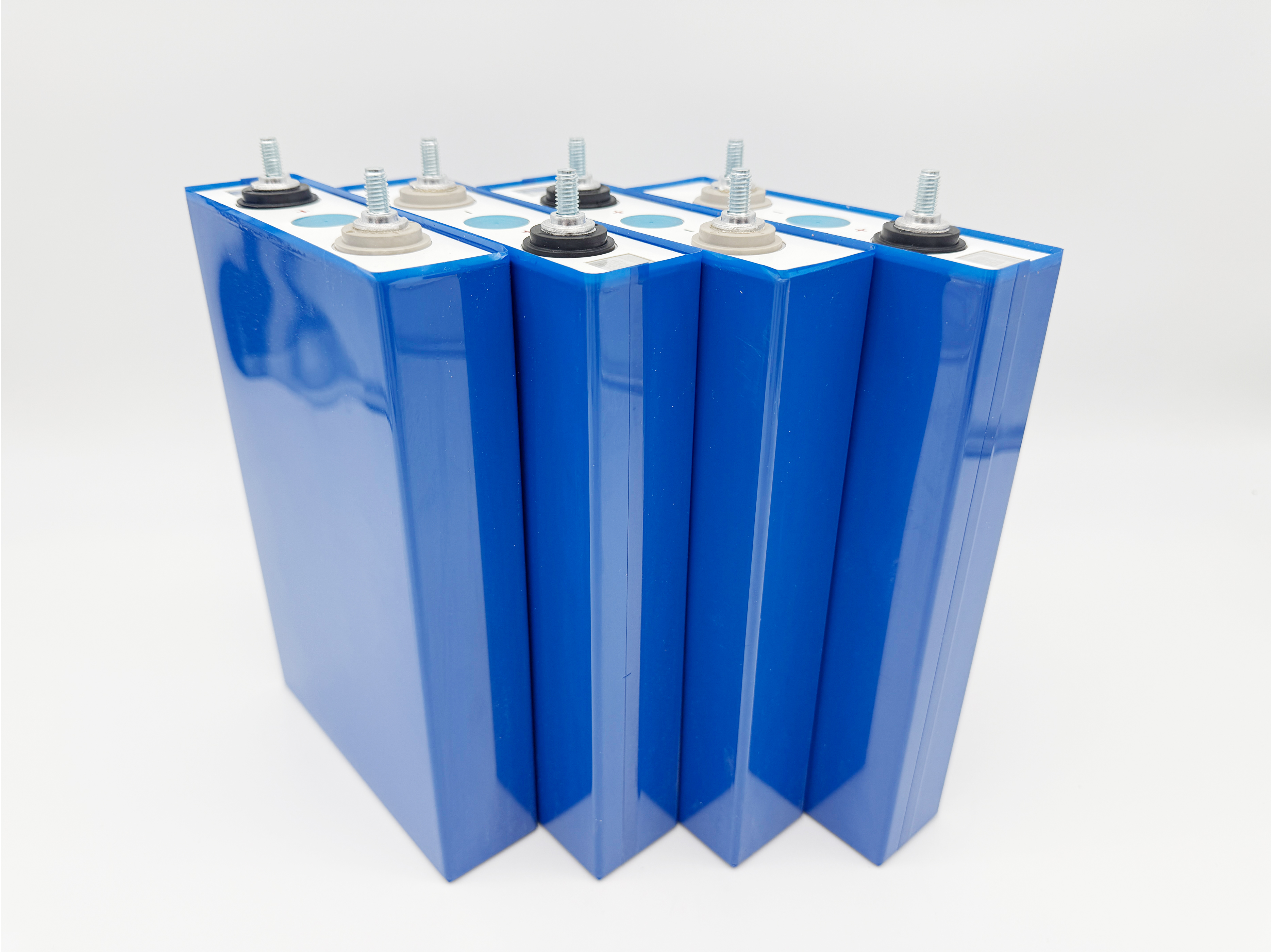

EVE LF105 3.2V 105Ah Battery Cell

EVE LF105 3.2V 105Ah Battery Cell

SpecificationDetails
BrandEVE
ModelLF105
Battery TypeLiFePO4 (Lithium Iron Phosphate)
Nominal Voltage3.2V
Capacity105Ah
Energy Storage336Wh
Cycle Life~4,000+ cycles (at 80% depth of discharge)
Charge Voltage3.65V (Maximum)
Discharge Cutoff Voltage2.5V
Standard Charge Current0.5C (52.5A)
Max Continuous Discharge Current1C (105A)
Peak Discharge Current2C (210A)
Internal Resistance≤0.5mΩ
Operating Temperature RangeCharge: 0°C to 55°C / Discharge: -20°C to 55°C
Terminal TypeM6 Threaded Bolts
Dimensions200mm × 130mm × 37mm
Weight~2.25kg
