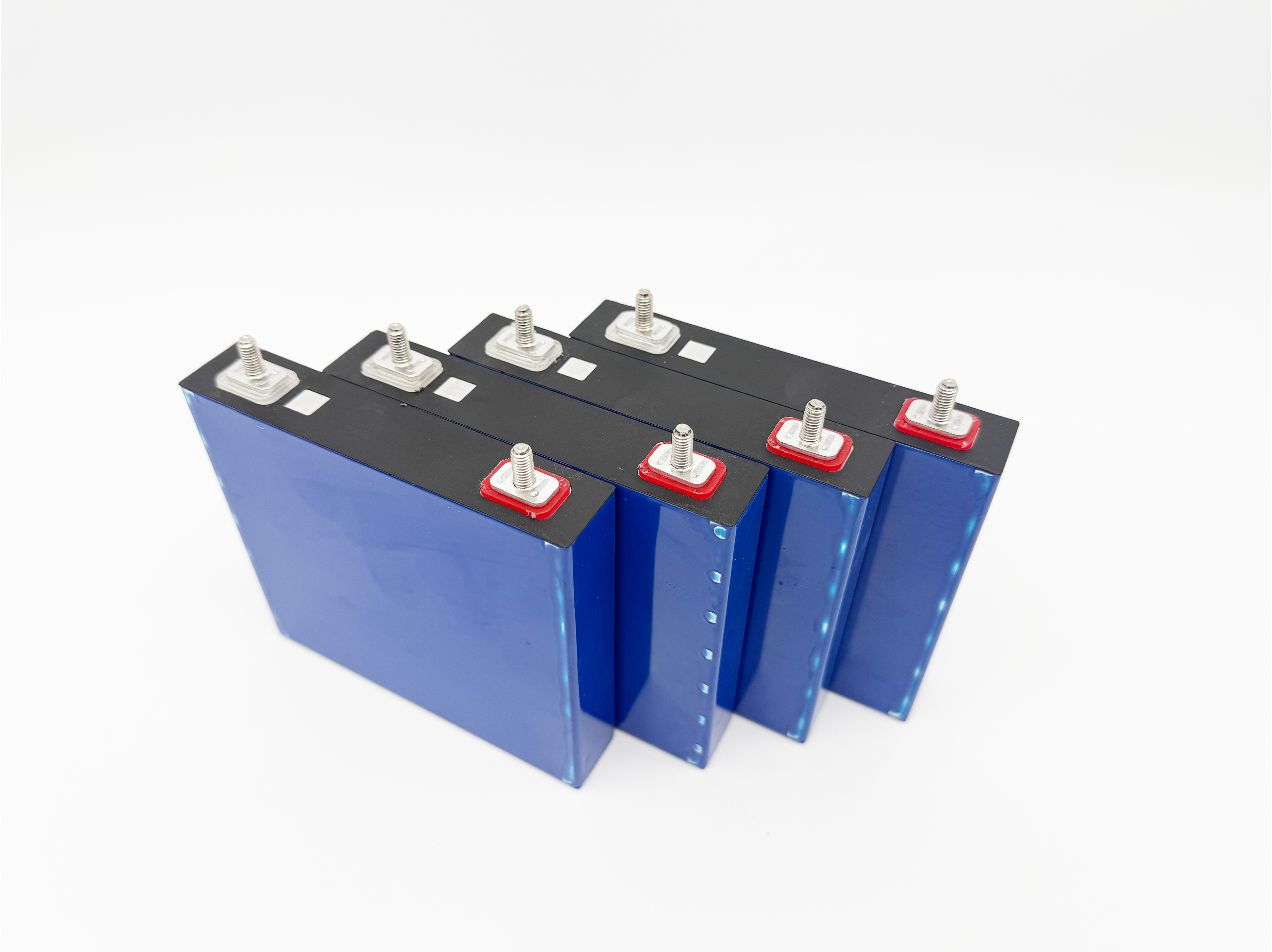

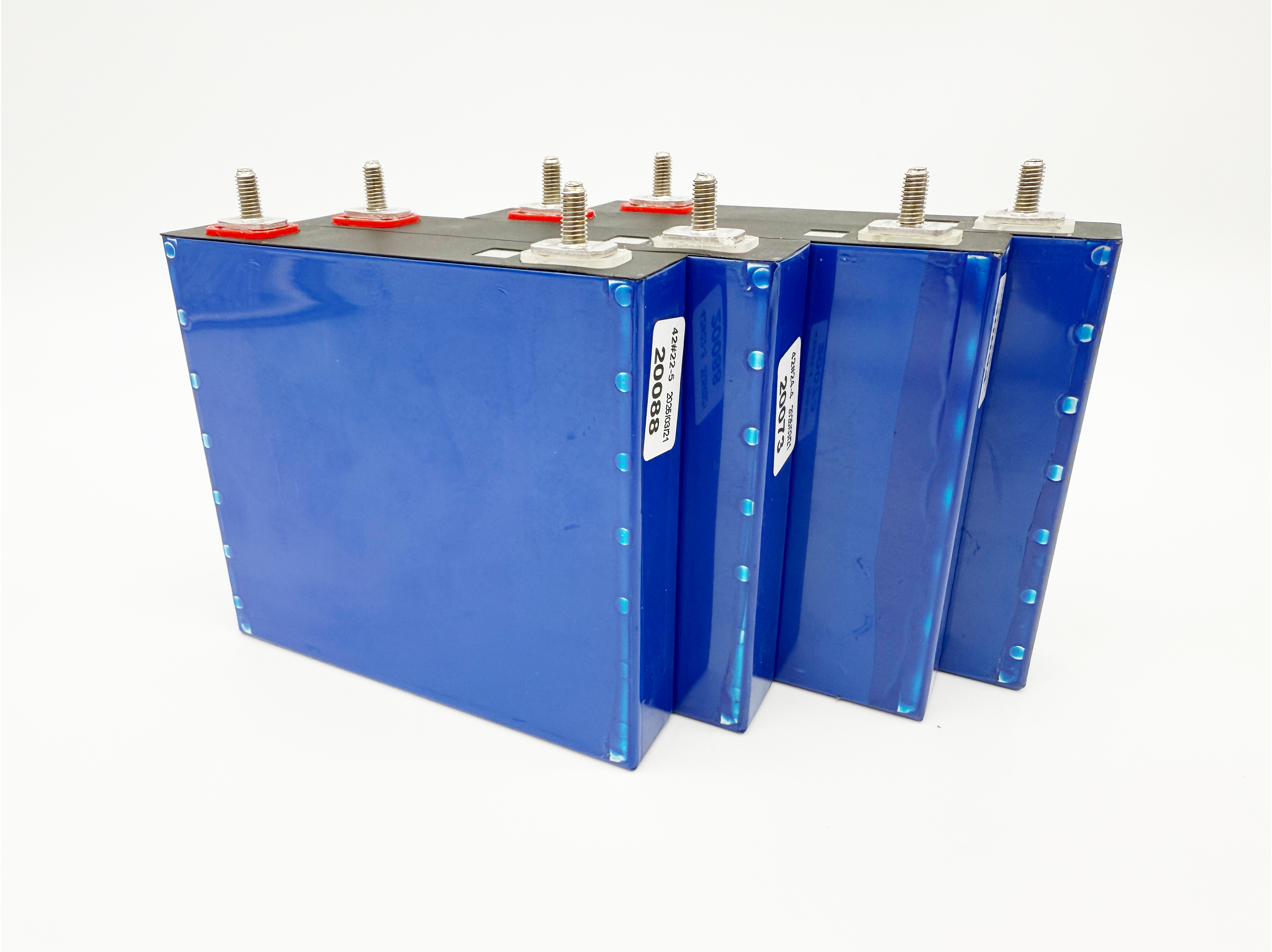

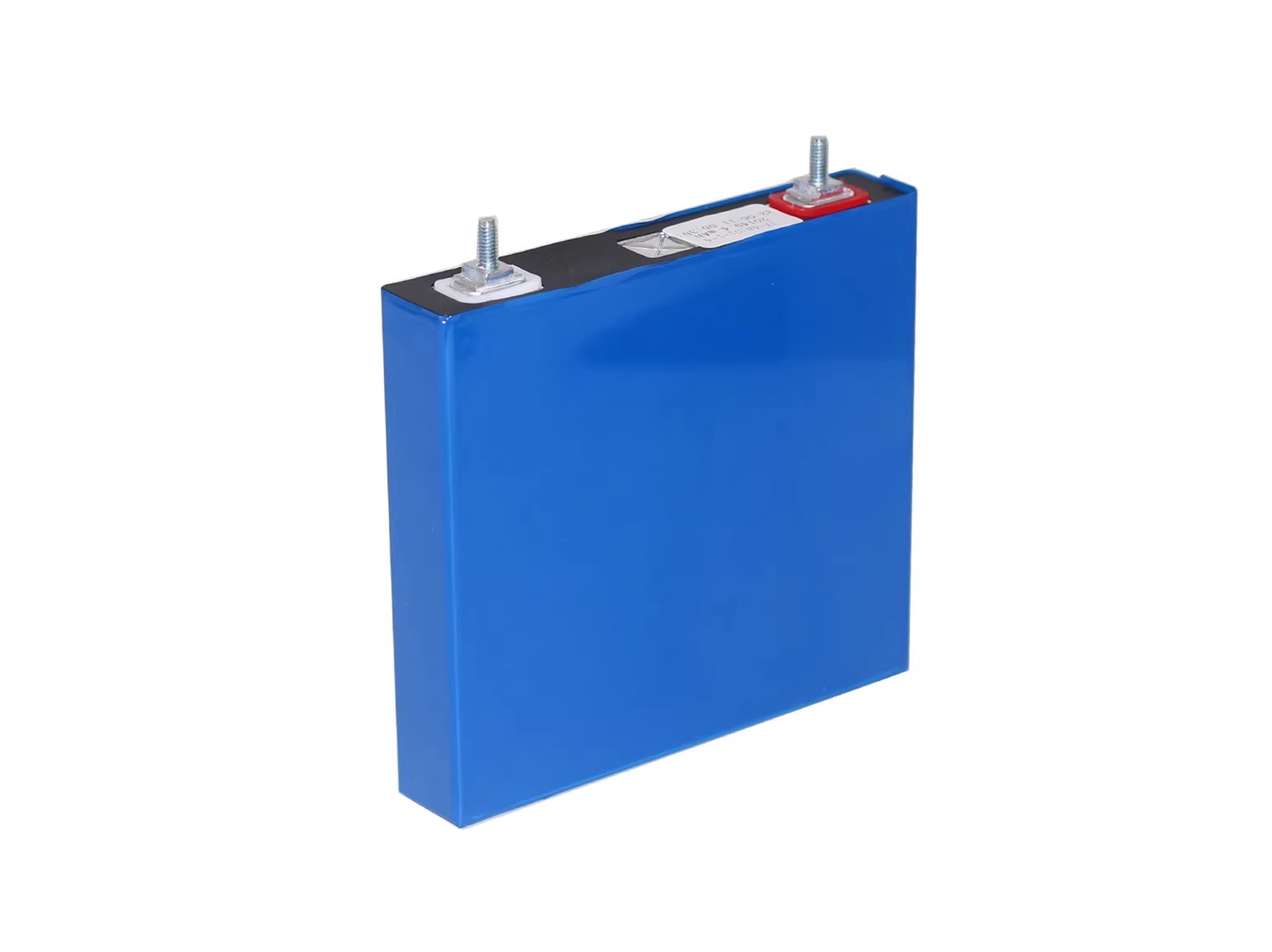

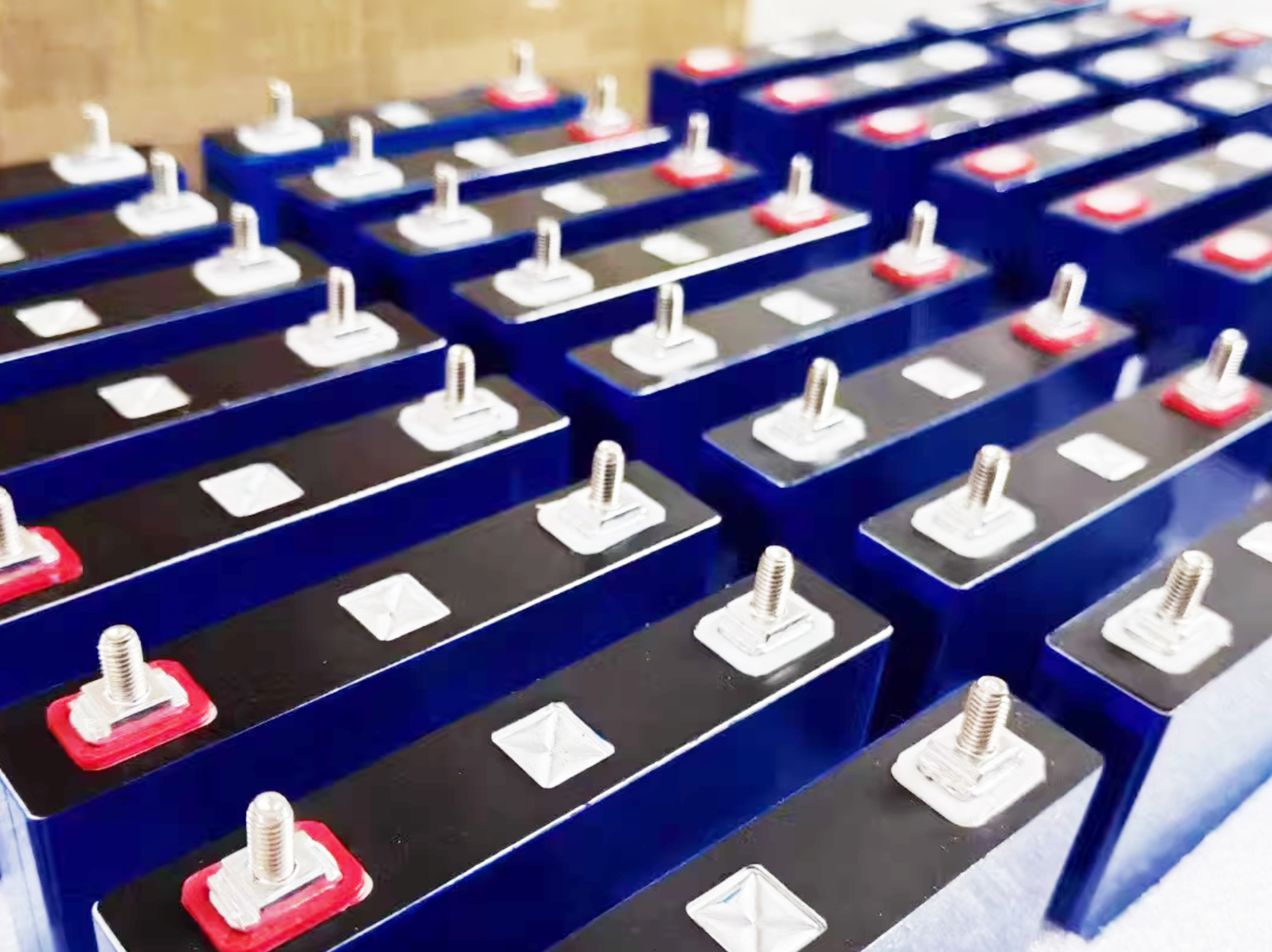

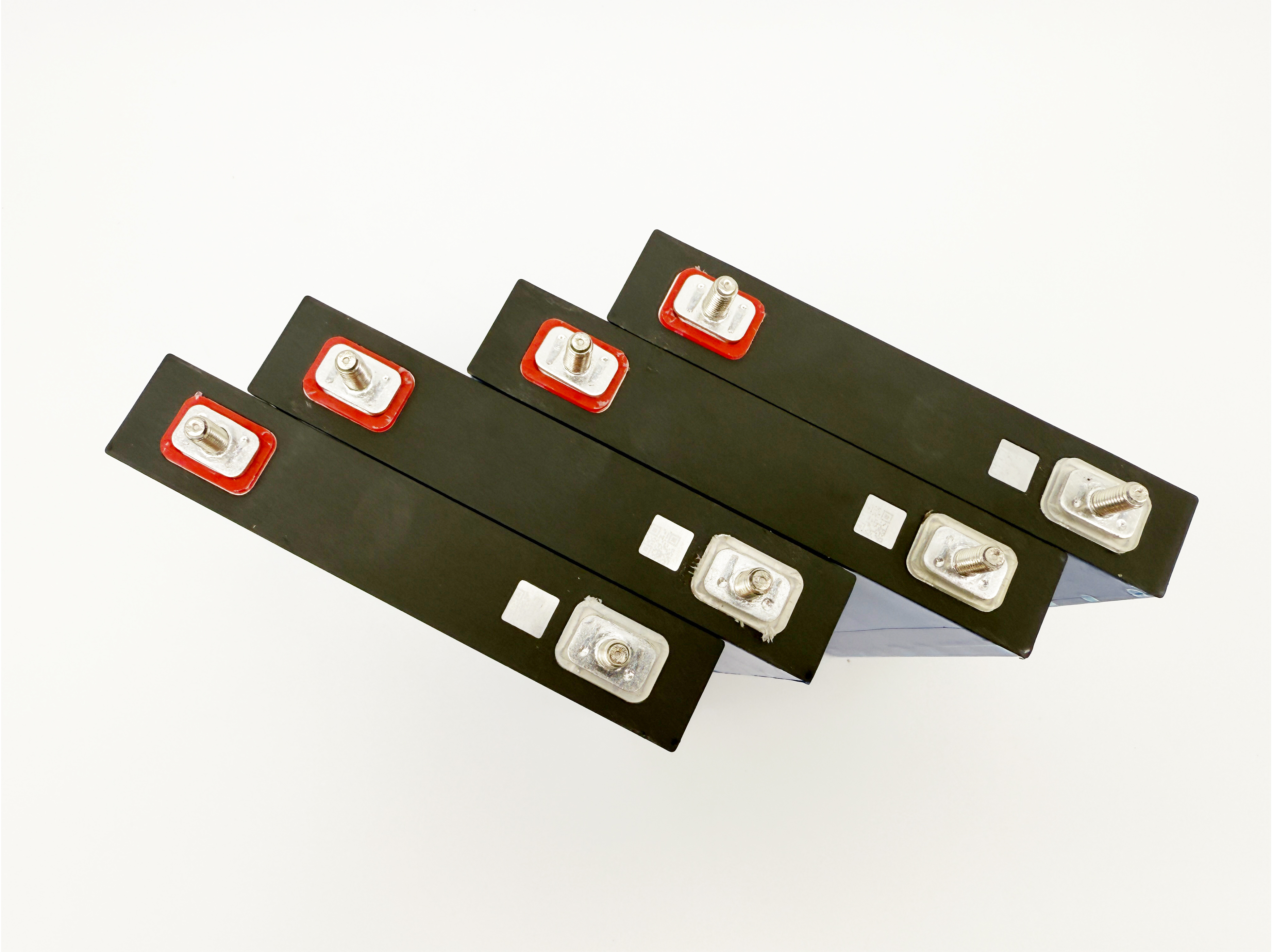

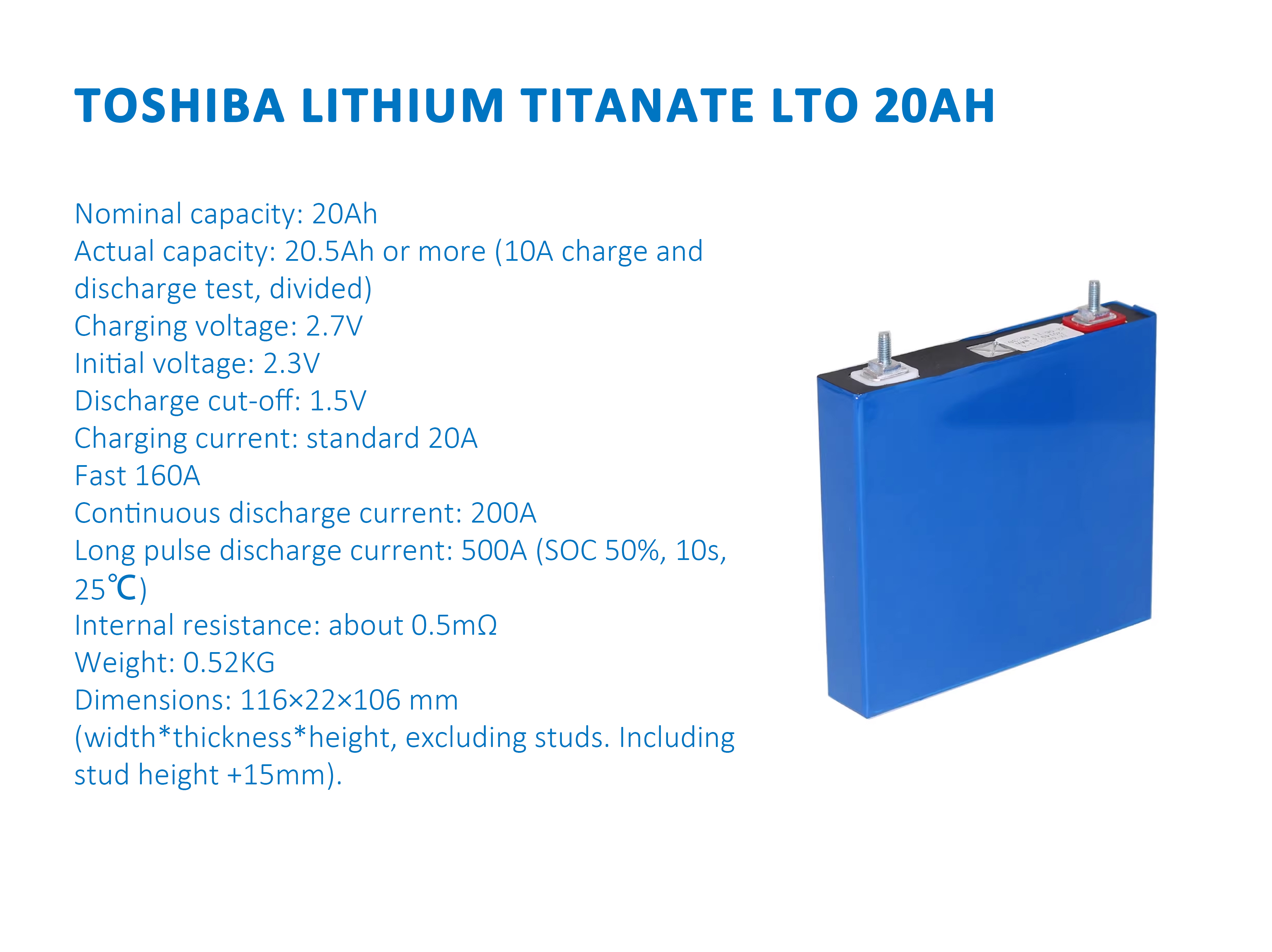

LTO 20Ah Features

Nominal Capacity 20 Ah

Nominal Voltage 2.3 V

Weight 510 g

Energy / Weight 90 Wh/kg

Energy / Volume 177 Wh/L

Impedance (AC, 1kHz) 0.53 mΩ

Operating Voltage 1.5 to 2.7 V

Operating Temperature -30° to 55°℃

Charging Method CC-CV

Long Life Cycle Characteristics - Exceptional long life is achieved by using new oxide-based materials.  Capacity loss after 10,000 charge-discharge cycles is less than 20%.

Inherently Safe - The battery's advanced safety features include Toshiba's proprietary lithiumtitanate technology which prevents thermal runaway.

Fast Charge Rates - It takes only 6 minutes to charge from SOC 0% to 80%, SciB batteries increase customer up-time and productivity and enable efficient capture of regen energy.

High Output Performance - SCiB batteries offer a power density nearly equivalent to that of ultra-capacitors.  This ensures sufficient power output (160 A continuous) for high power application needs.

Superb Temperature Performance - SCiB provides sufficient discharge capacity at various temperatures ranging from ice-cold -30°C up to 55°C.  This makes SCiB suitable for applications in wide ranging temperatures. Production - Producing the batteries on a state-of-the-art automated high volume production line ensures that the customer receives the highest quality battery and stable supply to meet the most demanding application needs
