EVE LF230 Features
Intelligent factory design,
high-performance consistency.

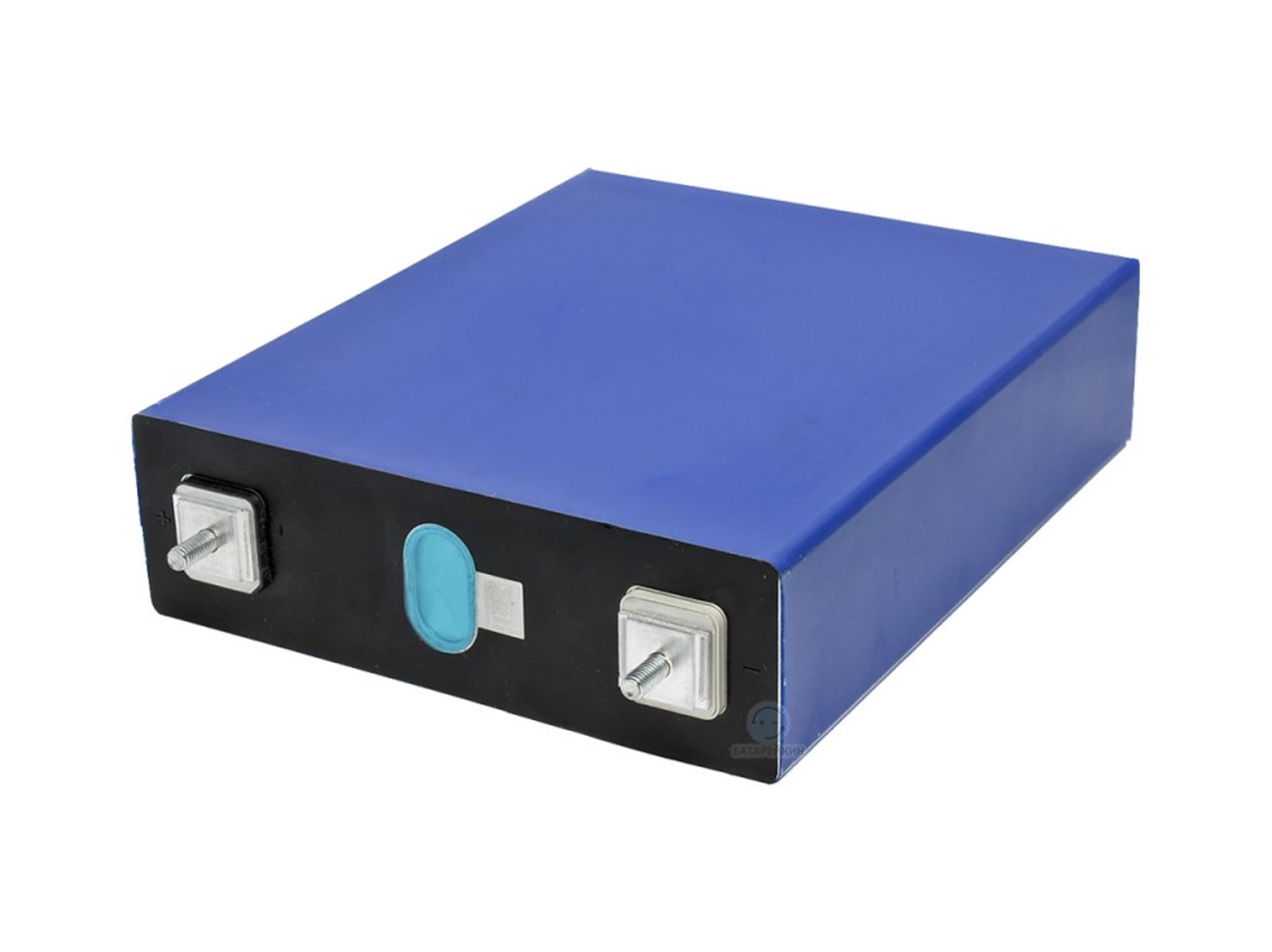

Square aluminum shell structure, high precision explosion-proof valve, high safety performance.
Low internal resistance, high discharge rate, and stable discharge platform.
Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1c.
Green environmental protection.
EVE LF230 Features
Intelligent factory design,
high-performance consistency.
Square aluminum shell structure, high precision explosion-proof valve, high safety performance.
Low internal resistance, high discharge rate, and stable discharge platform.
Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1c.
Green environmental protection.

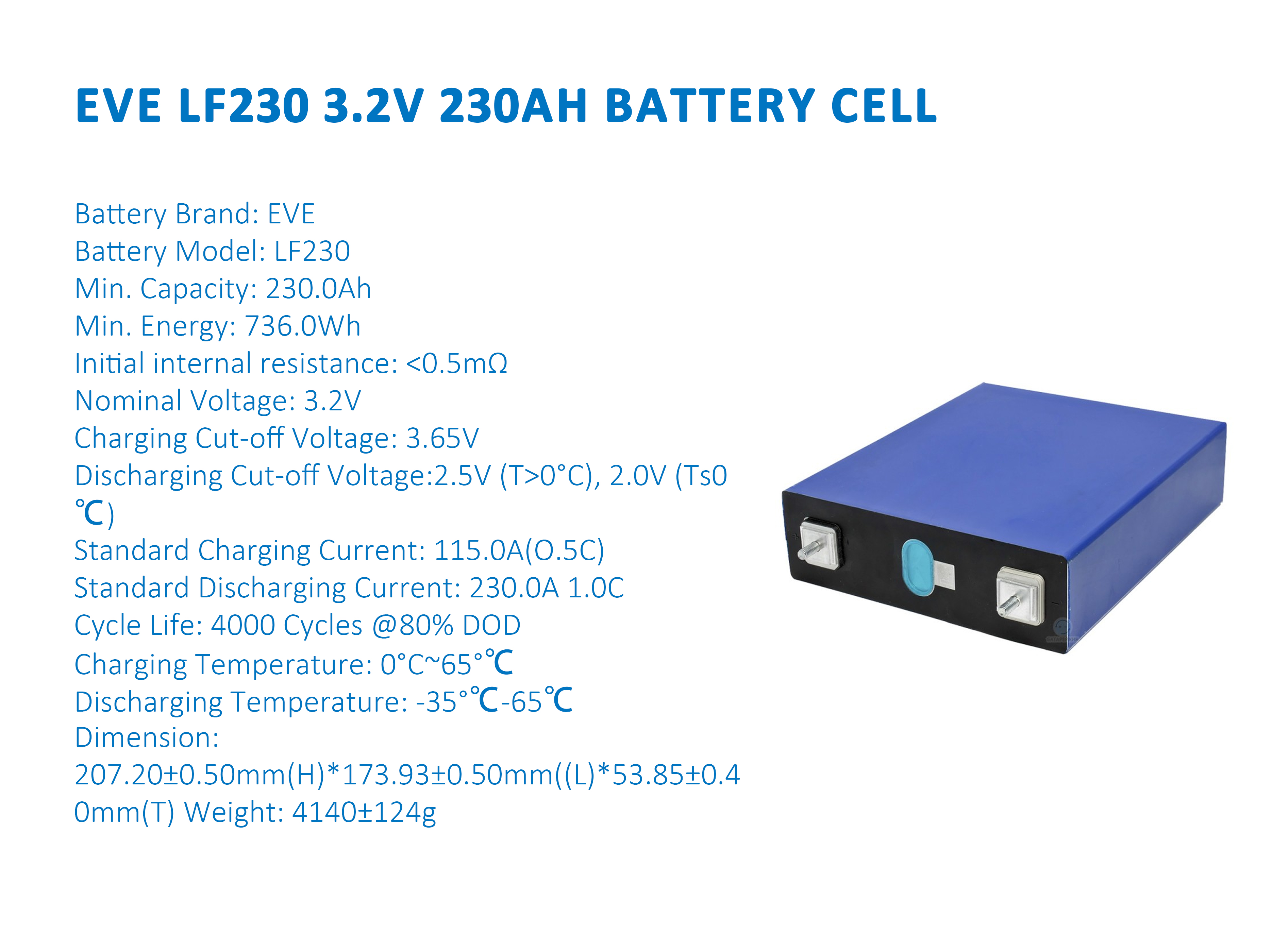

Battery Brand: EVE
Battery Model: LF230
Min. Capacity: 230.0Ah
Min. Energy: 736.0Wh
Initial internal resistance: <0.5mΩ
Nominal Voltage: 3.2V
Charging Cut-off Voltage: 3.65V
Discharging Cut-off Voltage:2.5V (T>0°C), 2.0V (Ts0℃)
Standard Charging Current: 115.0A(O.5C)
Standard Discharging Current: 230.0A 1.0C
Cycle Life: 4000 Cycles @80% DOD
Charging Temperature: 0°C~65°℃
Discharging Temperature: -35°℃-65℃
Dimension: 207.20±0.50mm(H)*173.93±0.50mm((L)*53.85±0.40mm(T) Weight: 4140±124g
